EDM Generator

EDM Generator
EDM Generator
Product Code : ENC-series
Brand Name : Ratnaparkhi EDM
Product Description

EDM Pulse Generator

We are leading manufacturer of special purpose machines to offer various demands of the customers all across the India and trader of precision tool room machines such as cnc wire cut edm, die sinker edm, edm drilling, drill cum tap remover edm, edm pulse generator, edm control panel, special purpose machines, used machines, edm brass wire, edm molybdenum wire, edm drill electrodes, edm oil, edm filters for various tool room industries and our manufactured special purpose machines with incorporation of premium quality raw material and latest technologies, our company supports in designing & manufacturing of special purpose machines(SPMs) as per customer’s requirement. We design & manufacture SPMs for the operations of boring, facing, facing - cantering, turning, drilling, reaming, tapping, chamfering, grinding, external threading etc.

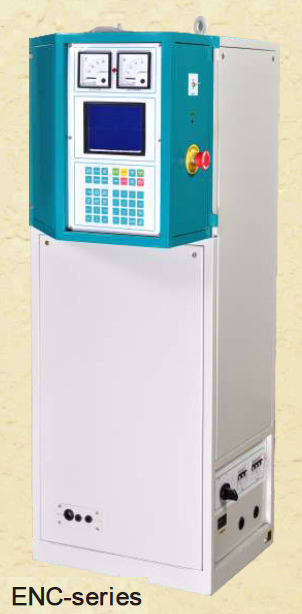

ENC - Series

plus generator

Programmable Z axis and EDM parameters.

50 programs can be stored

10 steps per program

In built 3 axes DRO

Like to like machining.

Higher MRR with Eco Pulse.

MOSFET for superior finish.

Carbide cutting.

Adaptive Multistage anti-arc

DC servo for Z axis with high speed jump.

Reverse servo and reverse polarity machining

Over voltage / Under voltage protection.

Maximum current 20  35  50  100 Amp.

Maximum MRR ENC20 - ENC35

Copper to Steel 120 - 220 mm³ / min.

Graphite to steel 250 - 370 mm³ / min.

Steel to steel 80 - 130 mm³ / min.

Min electrode wear < 0.1 %

Surface finish ( copper to steel ) 0.8 ¼ Ra.

Connected load 3 Phase, 415 VAC, 50Hz
