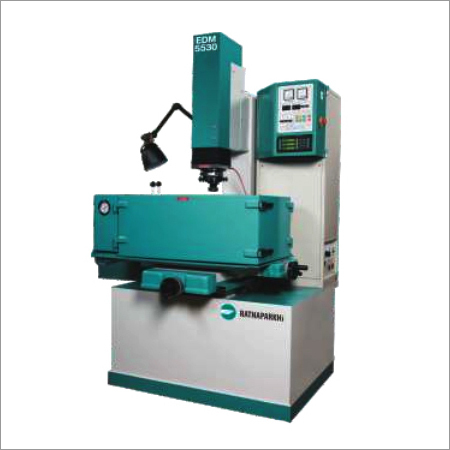

Die Sinker EDM E Series

Die Sinker EDM E Series
Die Sinker EDM E Series
Product Code : EDM 500 X 300
Brand Name : Ratnaparkhi EDM
Product Description

We are counted among the reputed business entities, engaged in exporting and supplying Die Sinker EDM E Series. This range of machine is used in metallurgical industries for cutting metal pips in accurate shapes and sizes. Machine is manufactured by using superior grade materials at the vendor's end. Our Die Sinker EDM E Series adopts high precision DC servomotor operating at low speed and high torque.



  • Consumes less power

  • High operational fluency

  • Easy to operate

Die Sinker EDM E 5030 Series

We are leading manufacturer of special purpose machines to offer various demands of the customers all across the India and trader of precision tool room machines such as CNC wire cut EDM, die sinker EDM, EDM drilling, drill cum tap remover EDM, EDM pulse generator, EDM control panel, special purpose machines, used machines, EDM brass wire, EDM molybdenum wire, EDM drill electrodes, EDM oil, EDM filters for various tool room industries and manufacturing industries and we are focusing the market places in salem, namakkal, erode, nilgiris, Coimbatore, trichy, tiruppur, karur, thanjavur, dindigul, pudukkottai, theni, Madurai, ramanathapuram, virudhunagar, thoothukudi, tirunelveli, kanyakumari, Thiruvananthapuram, Kollam, Pathanamthitta, Alapuzha, Kottayam, Idukki, Ernakulam, Thrissur, Palakkad, Malappuram, Kozhikkode, Wayanad, Kannur, Kasargod and States and union territories as tamil nadu, kerala, Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal of all over India and our manufactured special purpose machines with incorporation of premium quality raw material and latest technologies, our company supports in designing & manufacturing of special purpose machines(SPMs) As per customer’s requirement. We design & manufacture SPMs for the operations of boring, facing, facing - Cantering, turning, drilling, reaming, tapping, chamfering, grinding, external threading etc.

Die Sinker EDM-E 5030 Series

Technical Specifications

Machine Tool            500 x 300 (5030)

Work tank size           725 x 415 x 315 mm

Work table size            500 x 300 mm

T slots for fixing                    3 of 10 mm

Longitudinal travel (X)                    280 mm

Transverse travel (Y)                       200 mm

Quil travel (Z)                        250 mm

Max. permitted load on the table   175 kg

Max. electrode weight                     50 kg

Max. height above the table           250 mm

Servo system (Z axis)                      DC servo system

Pump motor rating               1.5 HP, 3 phase

Overall dimensions (WxDxH)        1420 x 1140 x 2100 mm

Pulse Generator     E-Series

Max. working current                       35 + 3 Amp

No. of power settings                      99 x 9

Max. MRR (Copper to Steel)          240 mm3min.

(Graphite to Steel)                370 mm3min

(Steel to Steel)                      130 mm3min.

Min. electrode wear             < 0.1 %

Surface finish                       0.5  Ra

Connected load                   3 KVA

Power supply                        3 phase, 415 V AC, 50 Hz

Dielectric Unit

Dielectric capacity                250 Litres

Filter element                       10  Paper filter
