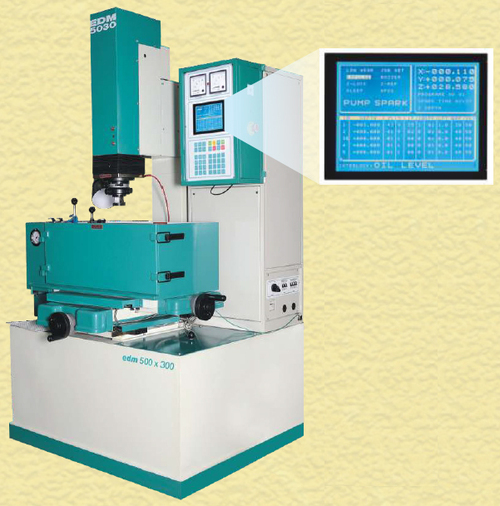

Die Sinker EDM

Die Sinker EDM
Die Sinker EDM
Product Code : ENC 5030
Brand Name : Ratnaparkhi EDM
Product Description

Die Sinker EDM

We are leading manufacturer of special purpose machines to offer various demands of the customers all across the India and trader of precision tool room machines such as cnc wire cut edm, die sinker edm, edm drilling, drill cum tap remover edm, edm pulse generator, edm control panel, special purpose machines, used machines, edm brass wire, edm molybdenum wire, edm drill electrodes, edm oil, edm filters for various tool room industries and our manufactured special purpose machines with incorporation of premium quality raw material and latest technologies, our company supports in designing & manufacturing of special purpose machines(SPMs) as per customer’s requirement. We design & manufacture SPMs for the operations of boring, facing, facing - cantering, turning, drilling, reaming, tapping, chamfering, grinding, external threading etc.

Features

ENC - Series plus generator

Programmable Z axis and EDM parameters.

50 programs can be stored

10 steps per program

In built 3 axes DRO

Like to like machining.

Higher MRR with Eco Pulse.

MOSFET for superior finish.

Carbide cutting.

Adaptive Multistage anti-arc

DC servo for Z axis with high speed jump.

Reverse servo and reverse polarity machining

Over voltage / Under voltage protection

Technical Specifications

Machine Tool                        500 x 300 (5030)

Work tank size                      725 x 415 x 315 mm

Work table size                     500 x 300 mm

T slots for fixing                    3 of 10 mm

Longitudinal travel (X)                    280 mm

Transverse travel (Y)                       200 mm

Quil travel (Z)                        250 mm

Max. permitted load on the table   175 kg

Max. electrode weight                     50 kg

Max. height above the table           250 mm

Servo system (Z axis)                      DC servo system

Pump motor rating               1.5 HP, 3 phase

Overall dimensions (WxDxH)        1420 x 1140 x 2100 mm

Pulse Generator                   E-Series

Max. working current                       35 + 3 Amp

No. of power settings                      99 x 9

Max. MRR (Copper to Steel)          240 mm3min.

(Graphite to Steel)                370 mm3min.

(Steel to Steel)                      130 mm3min.

Min. electrode wear             < 0.1 %

Surface finish                       0.5 ¼ Ra

Connected load                   3 KVA

Power supply                        3 phase, 415 V AC, 50 Hz

Dielectric Unit

Dielectric capacity                250 Litres

Filter element                       10 ¼ Paper filter
